| The Schertler BASS Active Bass Loudspeaker - 200 W RMS The BASS subwoofer is the perfect complement to the UNICO or DAVID. |
|
|---|---|
|
Schertler is pleased to announce the introduction of the "BASS" Active Subwoofer to enhance the
performance of your acoustic instruments, producing strong bass frequencies of the Double Bass,
Acoustic Bass Guitar and Cello.
The Bass Subwoofer utilizes the low cut feature of the UNICO and DAVID to faithfully and beautifully reproduce the bass frequencies of your instrument. Used with two SIDE, or two PUB-2/280 Active Speakers, the Stereo Separation feature of the BASS Active Subwoofer provides a solid foundation for your sound system. Combined with the OPERA 14 Channel Mixer with its gentle analog spring reverb and clean preamps, you have a sound system that is second to none in performance and portability, with power and the most responsive and cleanest sound you can imagine. The Bi-Polar 200 W RMS traditional power supply featuring a toroidal transformer ensures a controlled, extremely accurate and powerful reproduction of bass frequencies. The compact design and efficient circuitry deliver an incredible low end with power that belies the small portable package. |
|
|
The BASS joins the superior quality Pro Audio series from Schertler featuring: PUB 280 Active Speaker (280 W RMS continuous bi-amplified) SIDE Active Speaker (180 W RMS continuous bi-amplified) PUB 380 Bass Extension (380 W RMS continuous) BASS Bass Extension (200 W RMS continuous bi-polar) UNICO 4 Channel Combo Amp (180W RMS continuous bi-amplified) DAVID 2 Channel Amp (80W RMS continuous bi-amplified) OPERA 14 Channel mixer (6 mic inputs) |
| SPECIFICATIONS: | |
|---|---|

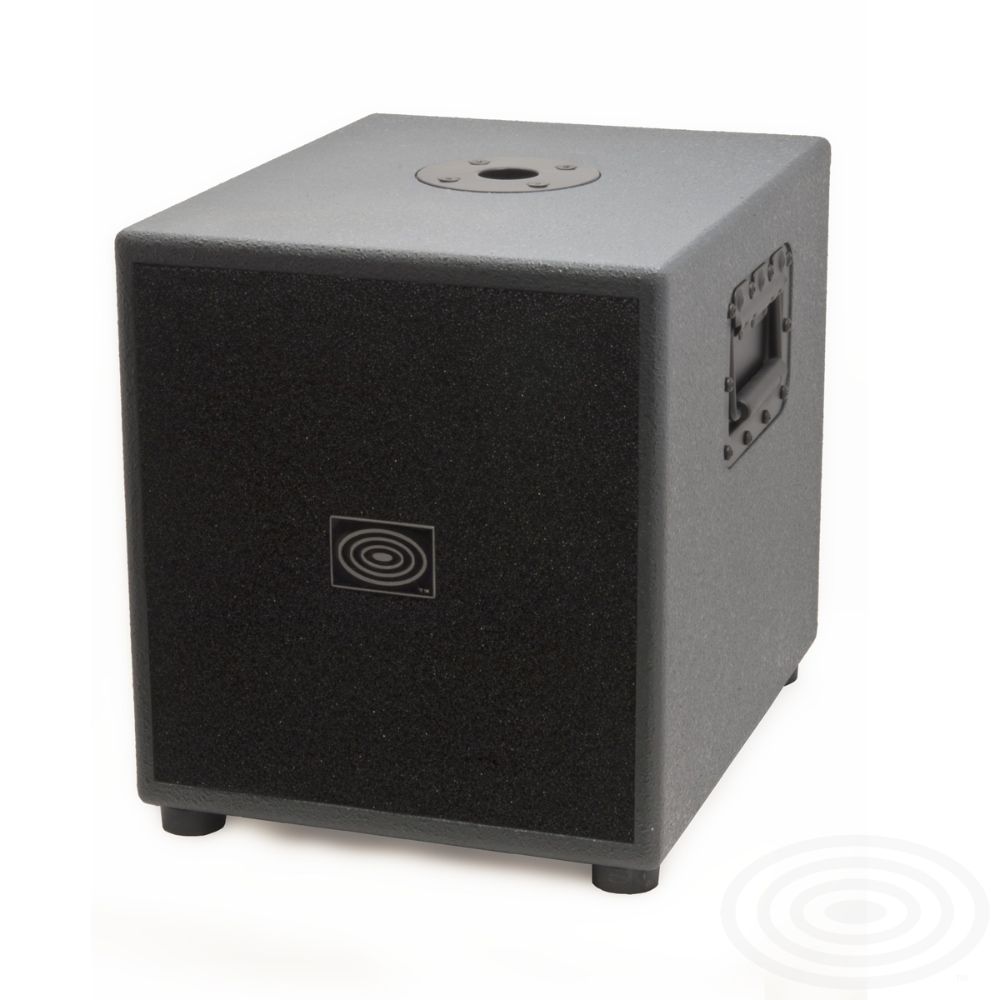

| CONSTRUCTION: | Bass Reflex 10" woofer with stereo filter input |
| POWER OUTPUT: | 200 W RMS (continuous) 300 W peak (8 ohms / 0.10% THD) |
| FREQUENCY: | 25Hz - 200Hz (-3dB) |
| MAXIMUM SPL: | 117 dB |

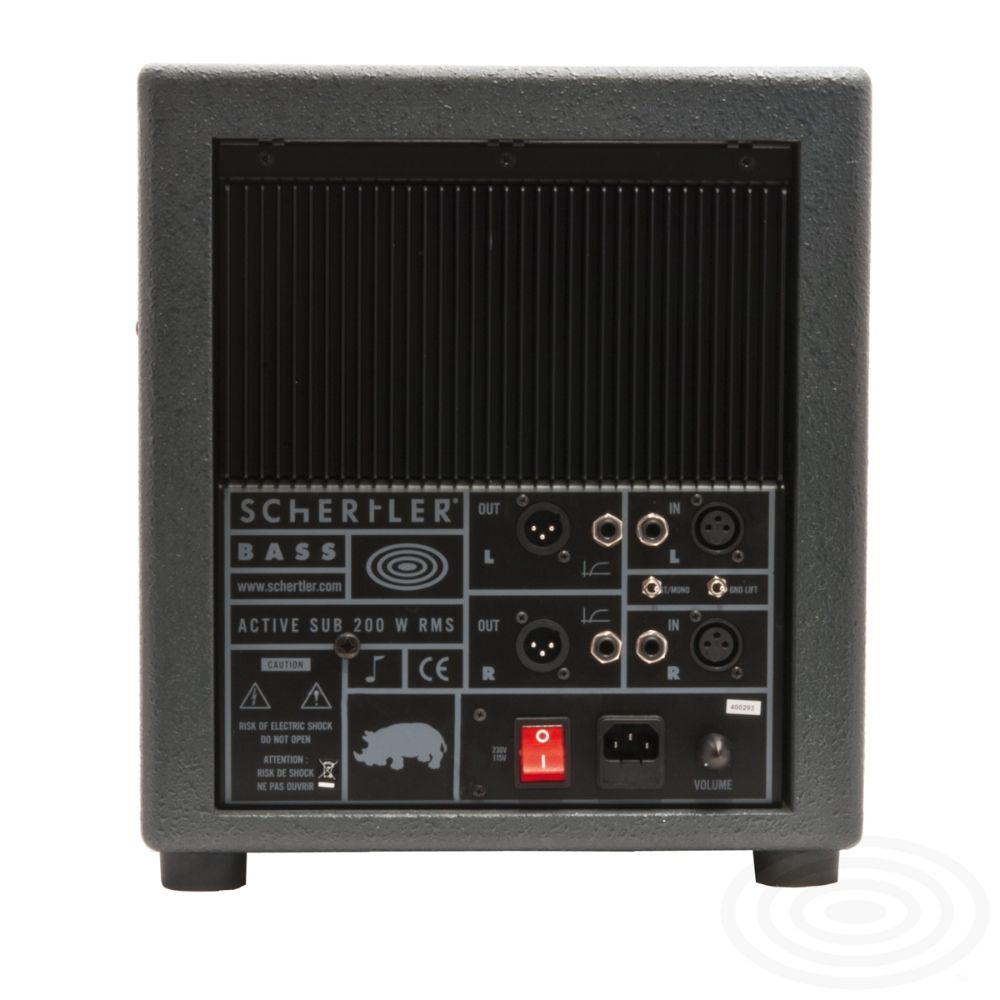

| CONNECTIONS: | XLR in/out(left/right) 2 crossover XLR outputs |
| POWER SUPPLY: | 115V / 60 Hz, 220 V/ 50 Hz (manual switch) |
| SAFETY: | Ground Lift Switch(anti-hum) |
| CONTROL: | Volume |
| MOUNTING: | Standard 36 mm pole sockets (top and bottom) |
| TRANSPORT: | Two Spring loaded carrying handles |
| DIMENSIONS: | 320 X 360 X 380 MM 12.6 x 14.2 x 15 IN |
| WEIGHT: | 15.5 Kg (35 lbs) |
