BLUESTiCK® CLASSIC Under Saddle Electrostatic Transducer for the Acoustic Classical Guitar

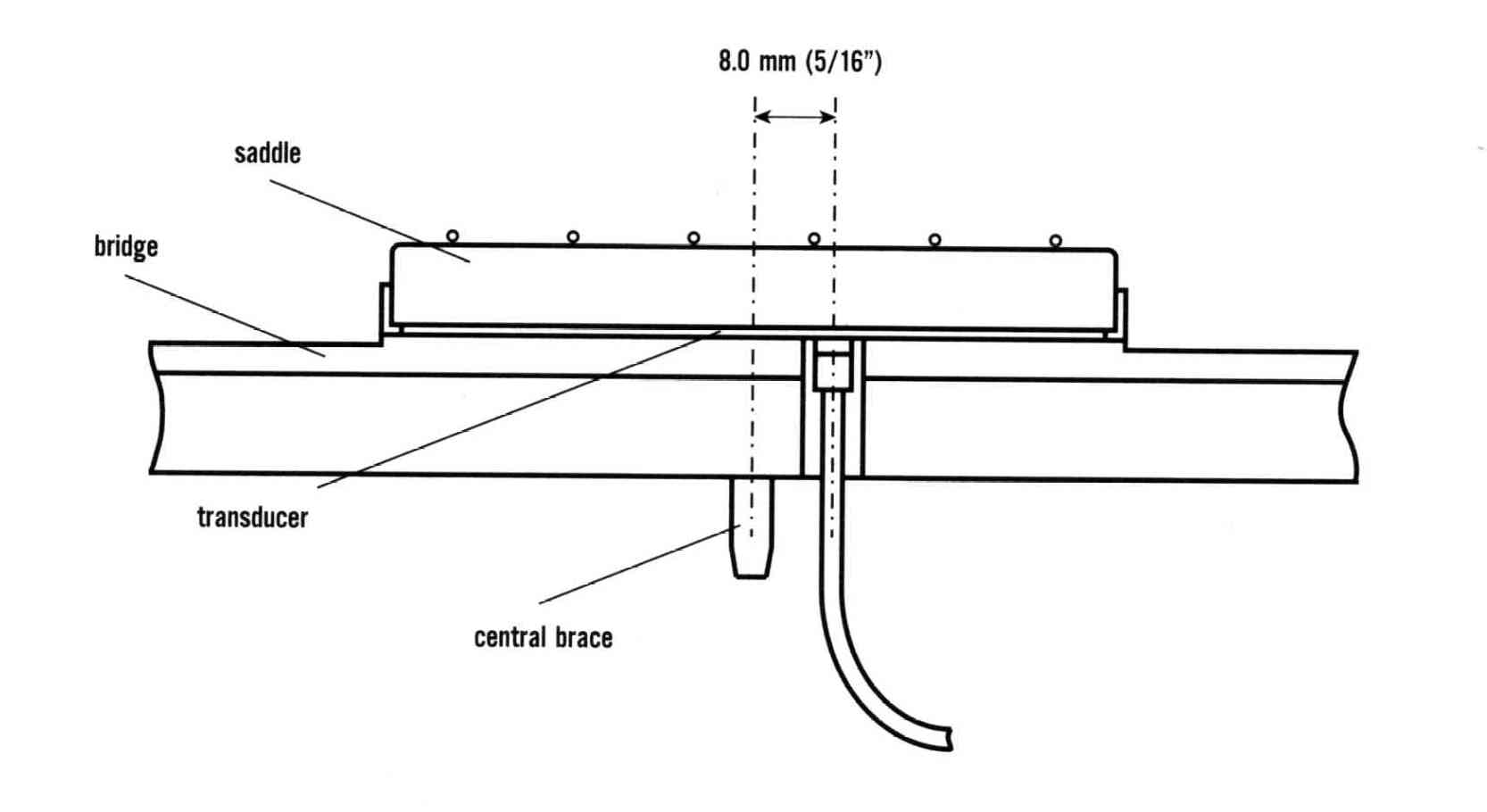

(note the off-center location of the microphone to avoid center top braces)

Bluestick Page | Image of Bluestick | Image of Bluestick in the Bridge | Image of Bluestick Preamp Assembly

BLUESTiCK CLASSIC for Classical Guitars | BLUESTiCK MARINE Using the PRE-AII preamp | BLUESTiCK RetroFit for guitars w/piezo pickups


BLUESTiCK® Classic

The Classic has all the features of the standard BLUESTiCK® except that the microphone position has been moved off-center to avoid center bracings. The Classic is offered in one size only, 2.5 x 74 mm, with a list price of $195.00.

Technical Specifications

FREQUENCY RESPONSE	- 20 to 20 kHz
MAXIMUM OUTPUT	+8 dBu
NOMINAL OUTPUT	0 dBm
VARIABLE GAIN	0 to 20 dB
MAXIMUM INPUT	0 dBm
SIGNAL TO NOISE RATIO	90 dB
THD+N	<0.07%, -10dBu
FREQUENCY RESPONSE	- 20 to 20 kHz
INPUT IMPEDANCE	40k ohms
OUTPUT IMPEDANCE	600 ohms
NOMINAL INPUT	- 20 dBm
POWER SUPPLY	2 CR2450 Lithium batteries, each 3.0 V, 50 ma (1000 + hours battery life)
