Prices for Standard Bluesticks

BLUESTiCK® MARINE Under Saddle Electrostatic Transducer for the Acoustic Classical Guitar
(with the "outboard" preamp [PRE-AII] and power supply - no batteries)

Bluestick® Page | Image of Bluestick® | Image of Bluestick® in the Bridge | Image of Bluestick® Preamp Assembly

BLUESTiCK® CLASSIC for Classical Guitars | BLUESTiCK® MARINE Using the PRE-AII preamp | BLUESTiCK® RetroFit for guitars w/piezo pickups

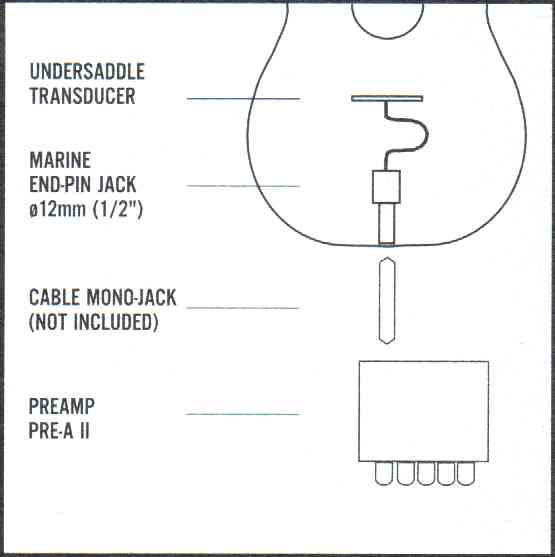

For those wanting control of their sound right by their side, Schertler® presents the Bluestick® Marine, combining the Bluestick® with the PRE-AII preamplifier, which has controls for gain, volume, Hi and Lo EQ, and resonance filter. The Bluestick® connects to the Marine jack and circuit by means of the usual solderless clamp mechanism provided with for all Bluesticks. The Pre-AII replaces the internal preamp (mounted inside the guitar) used with the standard Bluestick®, and is powered by a 12VDC regulated supply - no batteries are needed.

Bluestick Marine Bluestick, end pin jack w/output board and Pre-AII	$595.00 complete	size 2.5 mm x 70 mm 2.5 mm x 74 mm 3.0 mm x 70 mm 3.0 mm x 74 mm classic(offset) 2.5 mm x 46 mm 3.0 mm x 94 mm 2.5 mm x 56 mm
Bluestick Marine Kit Bluestick, end pin jack w/output board only	$195.00 complete	size 2.5 mm x 70 mm 2.5 mm x 74 mm 3.0 mm x 70 mm 3.0 mm x 74 mm classic(offset) 2.5 mm x 46 mm 3.0 mm x 94 mm 2.5 mm x 56 mm

Technical Specifications (0 dBu <=> 0.775 V)
FREQUENCY RESPONSE	20 to 20 kHz
MAXIMUM OUTPUT	+15 dBu
NOMINAL OUTPUT	0 dBu
MAXIMUM GAIN	32 dB
MAXIMUM INPUT	+10 dBu
SIGNAL TO NOISE RATIO	100 dB
THD+N	<0.05%, -10dBu
INPUT IMPEDANCE	25k ohms
OUTPUT IMPEDANCE	10 ohms
POWER SUPPLY	12VDC REGULATED
WEIGHT/PACKAGED WEIGHT	0.45kg (1 lb) / 0.76 kg (1.7 lb)
DIMENSIONS (PRE-AII)	120x120x35mm (4.7x4.7x1.4in)
